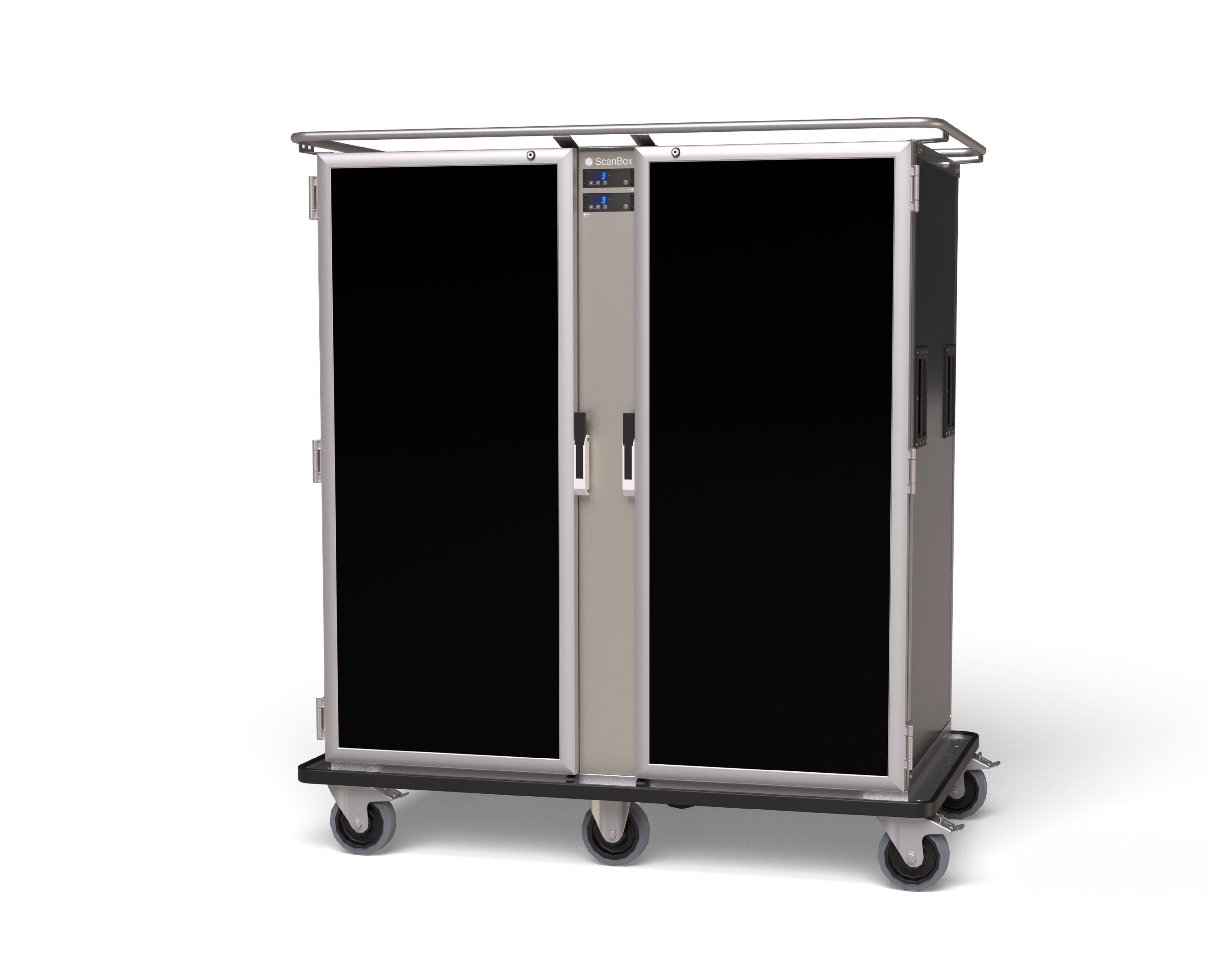

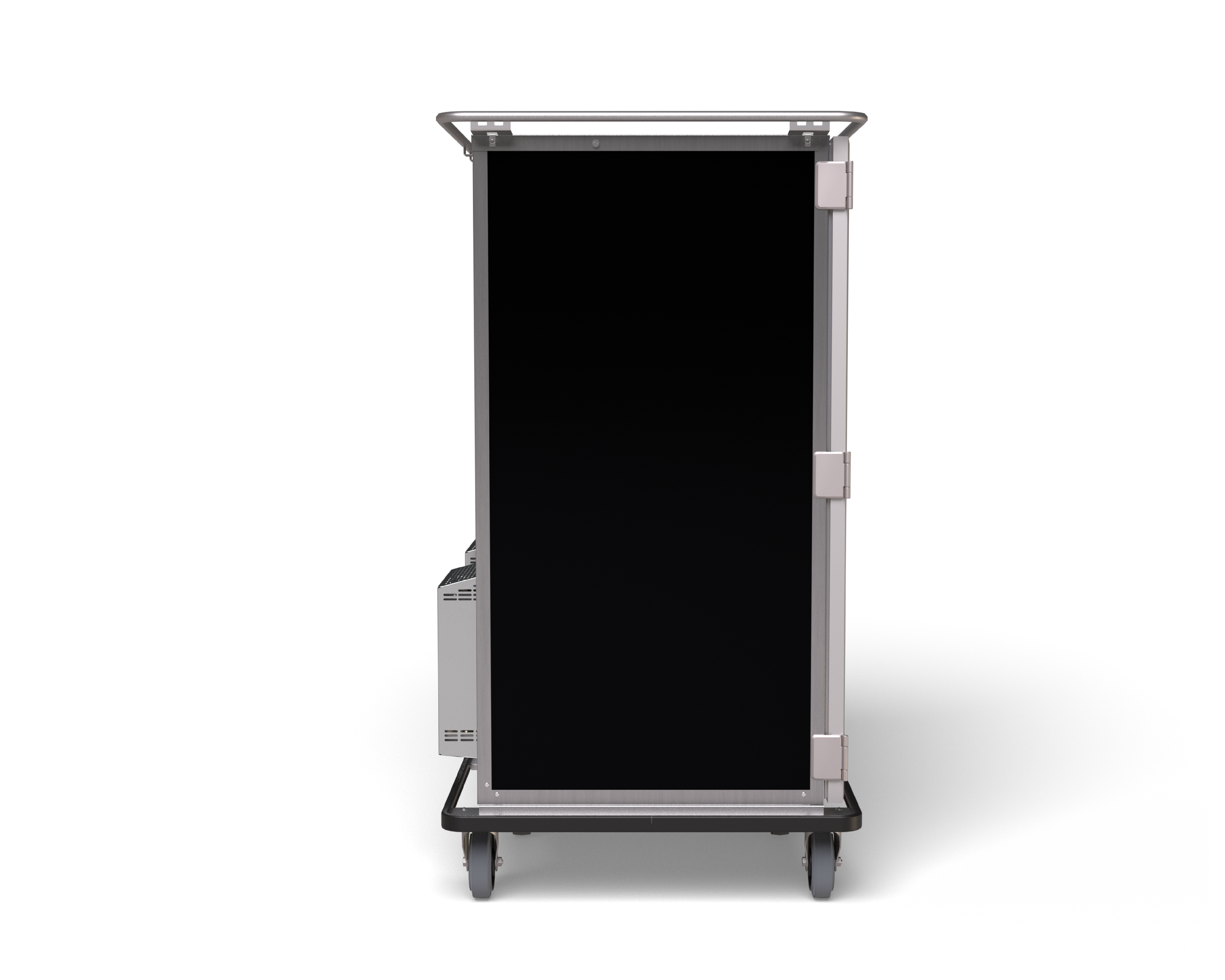

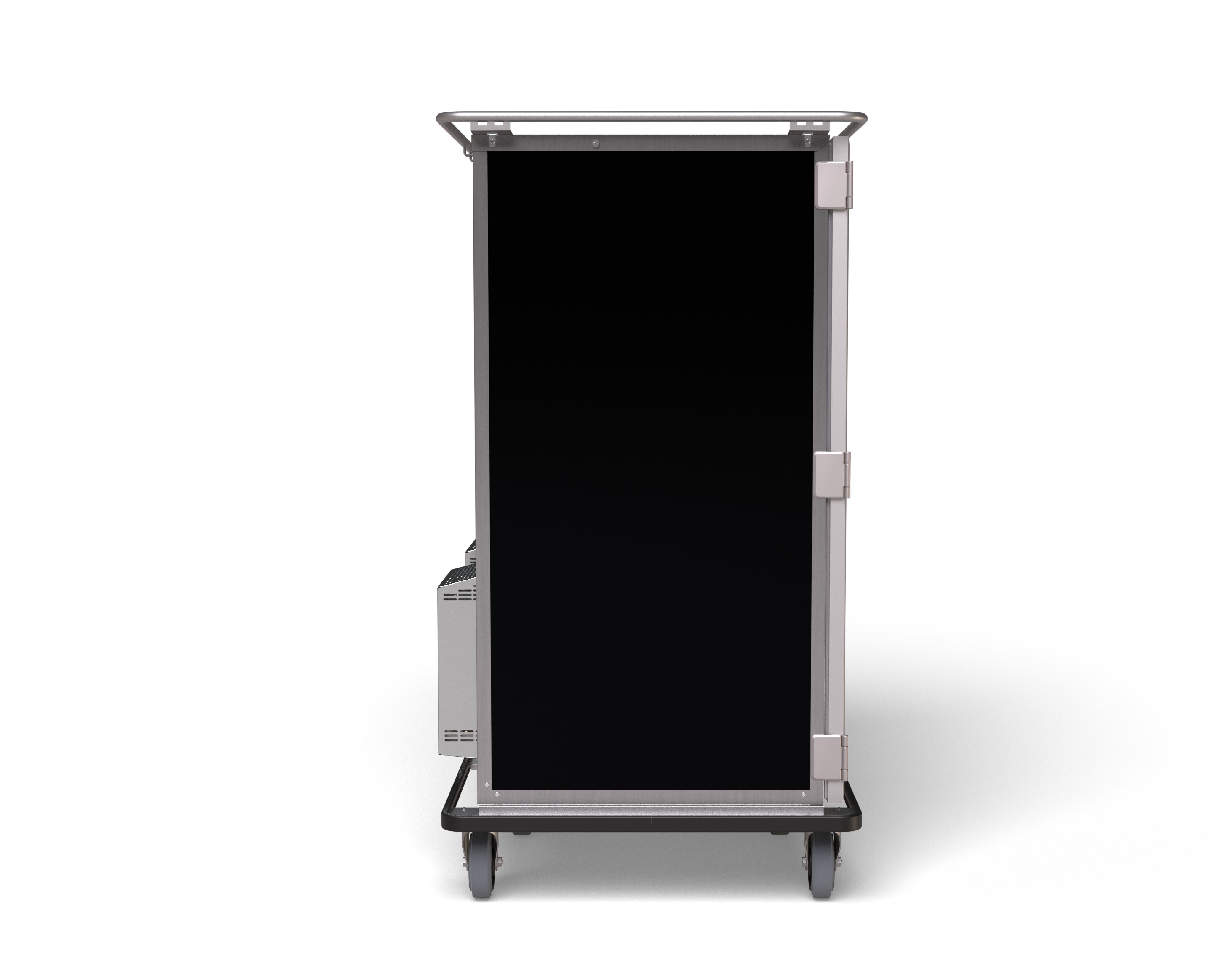

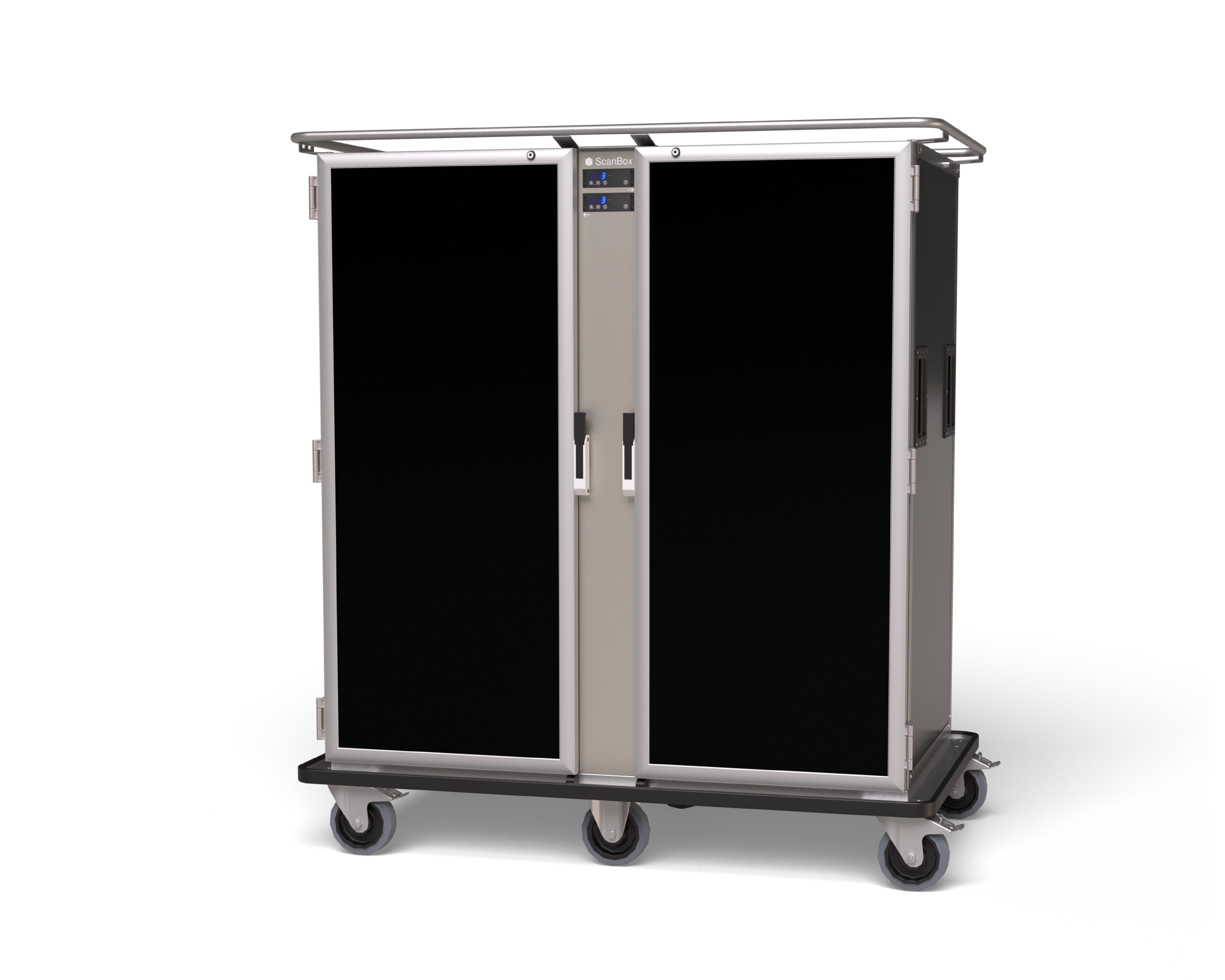

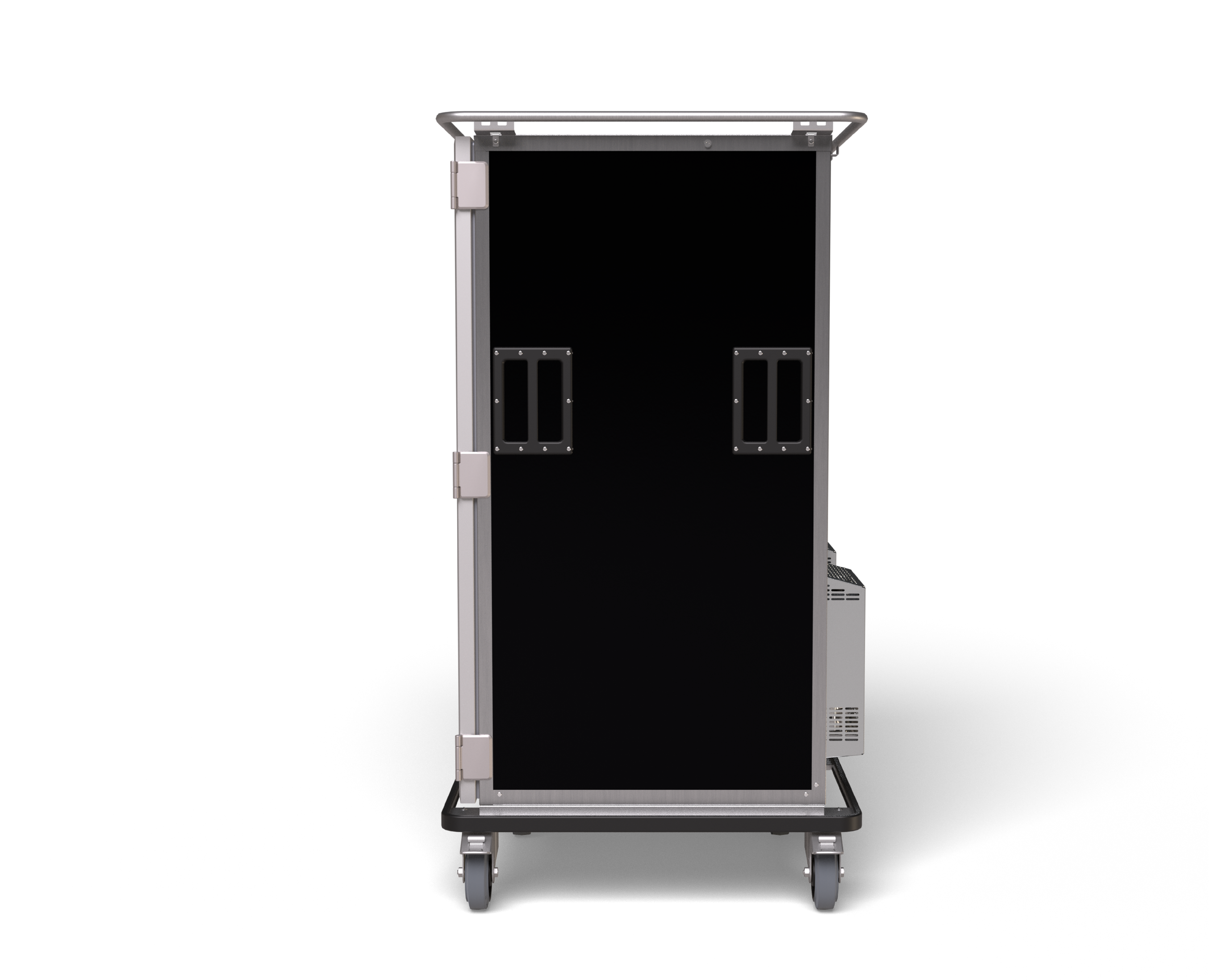

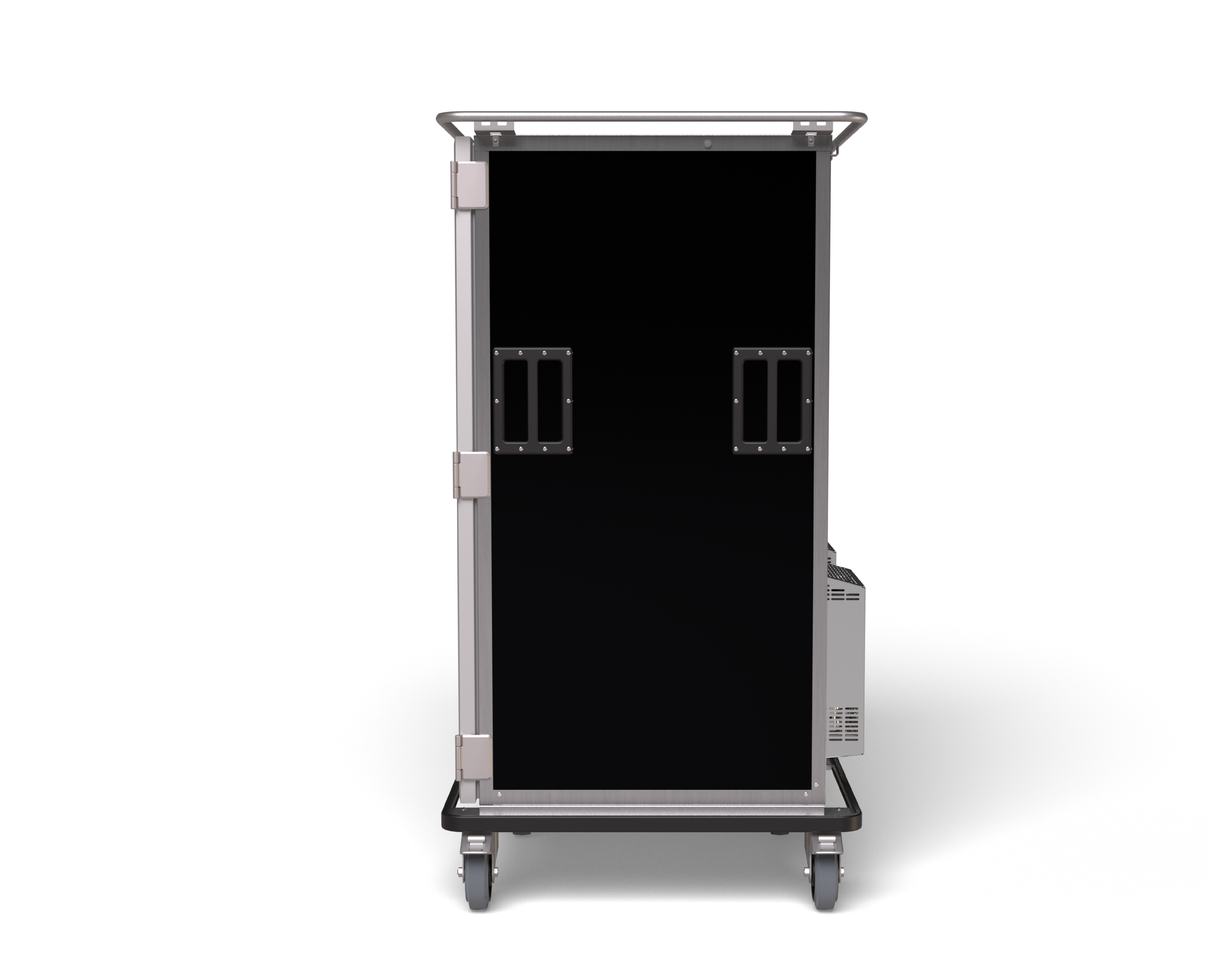

Banquet Line Duo
- Compressor cooling
- Compressor cooling
Product description
The Banquet Line Duo is manufactured to hold and transport cold food in two separate compartments with GN 2/1 capacity. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The right and left compartments of the box form individual temperature zones that are equipped with compressor cooling for efficient cooling down to 3°C in 30 minutes. Digitally adjustable temperatures ensure excellent food quality control. ScanBox Banquet Line Duo is available in several sizes with a capacity of up to 64 containers in the GN 1/1 standard.
Equipped with ScanBox Digital Control, One grip handle, solid doors, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005, 220-230V single phase as standard. The equipment can be easily adapted as required through available extra options.
Electrical system
- 220-240 V
- 100-125 V
Model and size
- Cold; 12 GN | 100-120 portions | Max 108 kg food Cold; 12 GN | 100-120 portions | Max 108 kg food
- Cold; 16 GN | 140-160 portions | Max 144 kg food Cold; 16 GN | 140-160 portions | Max 144 kg food
Configure and select equipment
Technical specification
| Name | Value |
|---|---|
| Rack pitch | 80 mm |
| No of trays | 32 |
| Rack load max | 18 kg |
| Inside dimensions | W:557mm x H:1367mm x D:723mm |
| Outer dimensions | W:1584mm x H:1705mm x D:990mm |
| Weight | 235 kg |
| Voltage | 100-125 V |
| Power rating | 3 A |
| Effect - cold | 360 W |
| Cooling system | Compressor back mounted (std) |
| Volume | 1102 l |
Documents

Your configuration
BLDCC16-120Banquet Line | Duo | Cold 16 GN | Cold 16 GN
Technical specification
| Name | Value |
|---|---|
| Rack pitch | 80 mm |
| No of trays | 32 |
| Rack load max | 18 kg |
| Inside dimensions | W:557mm x H:1367mm x D:723mm |
| Outer dimensions | W:1584mm x H:1705mm x D:990mm |
| Weight | 235 kg |
| Voltage | 100-125 V |
| Power rating | 3 A |
| Effect - cold | 360 W |
| Cooling system | Compressor back mounted (std) |
| Volume | 1102 l |
